Copper Tubes

LWC Grooved Copper coil

Specifications (for reference only)

DESCRIPTION:

  1. Standard Complied: ASTM B-68, GB/T 20928
  2. Alloy no.: C12200, TP2
  3. Temper: soft drawn or light soft drawn
  4. Packing: Wooden pallet packing strong seaworthy, Coils will have to be collected into a pile to build round 3+3 or 7 coils carried on one fumigated wooden pallet. Cardboard flange to be inserted between each coil and to be placed onto the top of the highest one. Shrinking film wrapping the parcel, each parcel will have to be characterized by a label including the dimension, gross weight, tare and net weight, packing number, production date.

Level Wound Coil

Specifications (for reference only)

DESCRIPTION:

  1. Standard Complied: ASTM B-280, EN-12735, JISH-3300, GB/T-17791
  2. Alloy no.: C12200, C1220,TP2
  3. Temper: soft drawn or light soft drawn
  4. Coil Wt.: 100kg - 500 kg
  5. Main Specification: Outer Diameter: 4mm - 15.88mm, Wall Thickness: 0.28mm - 1.27mm
  6. Packing: Wooden pallet packing strong seaworthy, Coils will have to be collected into a pile to build round 3+3 or 7 coils carried on one fumigated wooden pallet. Cardboard flange to be inserted between each coil and to be placed onto the top of the highest one. Shrinking film wrapping the parcel, each parcel, will have to be characterized by a label including the dimension, gross weight, tare and net weight, packing number, production date.

Pancake Coils

Specifications (for reference only)

DESCRIPTION:

  1. Standard Complied: ASTM B-280, EN-12735, JISH-3300, GB/T-17791
  2. Alloy no.: C12200, C1220, TP2

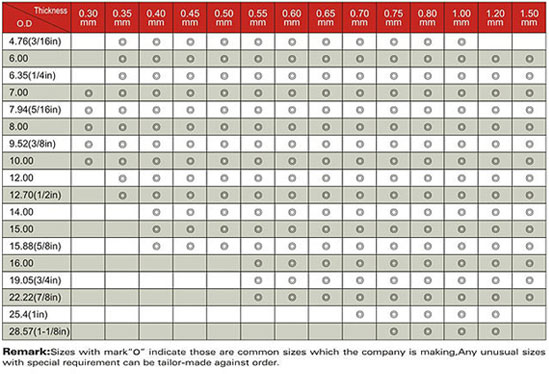

  3. Main Specification:
    • Outer Diameter: 3/16′(4.76mm) ~ 1-1/8(28.58mm)
    • Wall Thickness: 0.016′(0.41mm) ~ 0.05(1.27mm)
    • Length: 15m-50m
  4. Type of products: Double layer or single layer(according to length)
  5. Packing: Soft drawn in double layer or single layer with end capped, plastic bag shrink vacual packing with sticker label, then packed in strong seaworthy carton.

Air Conditioning Straight Tubes

Specifications (for reference only)

DESCRIPTION:

  1. Standard Complied: ASTM B-280, EN-12735, JISH-3300, GB/T-1527
  2. Alloy no.: C12200, C1220,TP2
  3. Temper: soft drawn or light soft drawn, hard or half hard

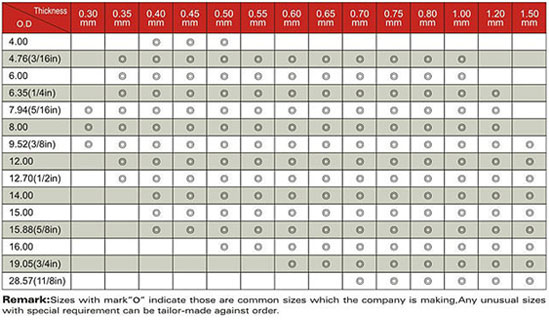

  4. Main Specification:
    • Outer Diameter: 4mm ~ 152.4mm
    • Wall Thickness: 0.41mm ~ 6mm
  5. Packing: plastic bag packing or wooden packing

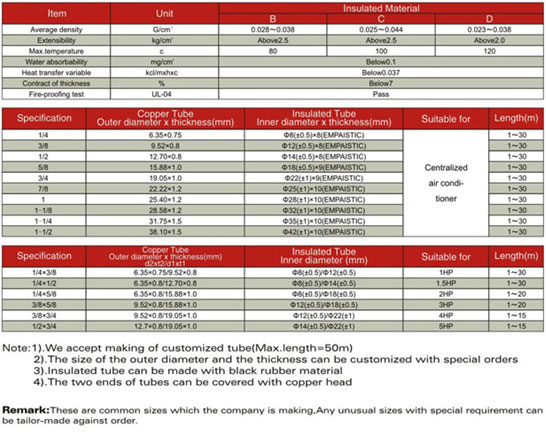

Insulated Copper Tubes

Specifications (for reference only)

DESCRIPTION:

  1. Standard Complied: ASTM B-280, EN-12735, JISH-3300, GB/T-17791(copper tube)
  2. Insulated Material: PE
  3. Character: Anti-UV, good heat resistance, low water absorption
  4. Copper thickness compatible any gases: R22 - R407C- R410A -R404A - R507C etc
  5. we accept making of customized tube( Max.length=50m)
  6. Insulated tube can be made with black rubber material.
  7. Insulated tube can be printed with black letter.
  8. The two ends of tubes can be covered with copper head.
  9. Packing: seaworthy strong carton box

Copper Water Tubes

Specifications (for reference only)

DESCRIPTION:

  1. Standard Complied: ASTM B-88, GB/T-18033
  2. Alloy no.: C12200, C1220,TP2
  3. Temper: hard or half hard
  4. Main Specification:
    • Outer Diameter: 4mm ~ 152.4mm
    • Wall Thickness: 0.41mm ~ 6mm
  5. Length: 5.8m or 3m etc
  6. Packing: plastic bag packing or wooden packing

Plastic-Coated Copper Tubes

Application: Fluid transmission of cool and hot water, drinking water, facilities health, cooling and heating, construction, anti-dew and anti-freezing in the transmission process.

Standard of tube: ASTM B-88, EN 1057

Copper Tube fitting for refrigeration purpose

Description:
Products: U bends, Tee, Elbow, Coupling, Stop end, Fittings reducer, Tap connector, disperse pipe, etc

Size:
1/4", 3/8", 1/2", 5/8"

Standard:
BS 864(British standards), ANSIB16.22 (American standards) we can custom made your own copper fittings with your design or sample.

Aluminum Tube

Application: electric heating tubes, condensers, air conditioners, automobiles water tanks, construction, solar energy, automobile modification , production line equipment etc Temper: soft/hard

Plain & grooved
The micro grooves inside this new aluminium tube are optimized for the best possible refrigerant-side heat transfer yielding the following benefits:

  1. Price per length of 3/8” or 9.52mm (Al tube is 40 % less than copper)
  2. Weight per length of 3/8” or 9.52mm (Al tube is 40% less than copper)
  3. Easy to form and bend
  4. High recycling value
  5. Narrow dimensional tolerances
  6. High surface quality
  7. Less material spring back vs. Copper (Ensuring a better bond between tube and fin during expansion)
  8. Same thermal expansion coefficient as Al fin stock (The bond between tube and fin will be constant regardless of temperature)
  9. Corrosion resistant to formic & acetic acid liquid/vapor (Fumes exhaled from building materials in new constructions)Other metals with similar qualities exist, but the aluminium used at Hydro combines these qualities in numerous and innovative ways. The precision tubes are frequently used for the following applications:
    1. Condensers
    2. Evaporators
